Defense

Surveillance cameras for stationary or mobile border surveillance

The Rugged design, with additional qualifications and screw-in C mount, expands the possibilities for use to the most extreme environments, even with temperature fluctuation as well as vibration and shock.

The performance spectrum of Tauri2 cameras is ideal for sight systems. They’re built into vehicles, such as race car cockpits as an “onboard cam”, or in specialized excavators to surmount blind spots and thus secure the excavator’s approval for road traffic.

HD or SD, just as required different resolutions, SD and HD (HD-SDI)

Different resolutions, SD and HD ((HD-SDI)
Optics with different focal lengths
Panoramic view up to 95° FOV
Moisture and dust protection to IP protection class 67
High-level protection against frost, saline environments and other environmental effects

Microscope Cameras, CCD and CMOS

Full HD cameras for pathologists, OEM cameras with HDMI interface and SD memory cards for the microscope manufacturer, cooled systems for spectroscopy, and multispectral imaging as well as a small yet high-performing camera family for microscopy dealers.

Light Measurement Cameras

With very good signal processing, excellent image quality and available interfaces to control peripherals as customers require, these cameras are optimally suited for the most diverse measurement tasks, such as measurement of lasers, LEDs and other light sources.

Ultra-Compact GigE Vision X-Ray Camera Modules

Advantages for You

Destruction-free materials testing/NDT system
Quality control from tires to weld seam inspection
X-ray inspection systems for food industries such as infant nutrition, ready-to-eat meals, beverages
X-ray detectors for luggage inspection systems
High-quality images with excellent grayscale resolution
At 30 fps, also well suited for digital real-time radiology
Sensor adjustment down to the pixel along all three axes
Identical camera pairs, precisely characterized across the entire control behavior for 3D X-ray systems
X-ray-specific real-time signal processing
Control software for evaluation conventiently on a PC.

UAV Control / UAV Piloting Cameras

Payload HD-Camera, high definition live images for observation and recon missions on stabilized and unstabilized multisensor platforms with aviation qualified rugged design, split head electronics, SMPTE-274M (HD-SDI), integrated image memory and horizontal image mirror.

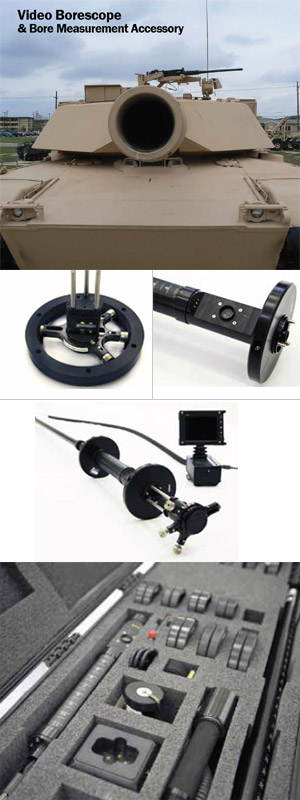

Gun Barrel Measurement and Inspection System

The Zistos Large Gun and Mortar Video Borescope replaces the M3 Borescope, used for artillery tube inspections by US and foreign militaries, for more than 30 years. The dual camera (front and side view) video solution provides a detailed view of the condition inside the artillery tubes. The built-in DVR records video (AVI) and still (JPEG) images for reports and transmission (email, etc.) to technical experts, as needed. This turnkey kit comes complete in a single case. It’s waterproof, rugged and field-proven for deployment, where needed.

Data for the tube and inspection location information (angle, depth, serial number, etc.) are recorded with the images. A single operator can comfortably perform an inspection in a relatively compact area. The system can be run from a variety of power sources for maximum portability.

The system is currently in use by other branches of the US Military as well as foreign militaries.

Inspect 57mm – 155mm+ diameter mortars and cannons
Side and forward looking cameras with built-in long life LED illumination
Single person operation: rugged, weather resistant, self-powered system
5.6” LCD monitor can be conveniently muzzle-mounted for larger tubes
Built-in DVR with dedicated one button JPEG and video capture and playback
Removable SD flash media and USB port for data transfer to thumb and hard drives including FIPS 140-2 encrypted drives
Digital readout of camera orientation
Telescoping poles engraved with depth measurement graduations
Digital grid overlay for determining the size of artifacts and objects
Internal wiring to camera with internal anti-tangle slip ring interface
Extend only as much pole length as required - operates in tight spaces
System can operate on rechargeable batteries, AA lithium batteries, vehicle 12DC, NATO Slave, or 110-240VAC, other power options available
Compatible with existing 120mm XM12 Bore Erosion Gauge (used with M3 Borescope)
Wireless automatic Laser Depth Measurement option available
UV option for Magnetic Particle Inspection available
