Aerospace

Fluid Dispensing

Desktop Dispensing platform providing a wide variety of applications. The machine is one of the few desktop platforms moving the dispense valve in X,Y and Z direction instead of moving the product on a moveable table. This makes programming very easy. The Dispense Master is equipped with a standard camera for programming purposes, calibration and fiducial alignment. The standard work area of the Dispense Master is 320 x 420mm.

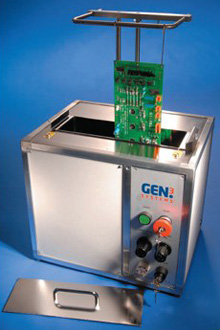

Conformal Coating & Curing

Nano - Coat - The Ultra Precision Dip Coating Systems

The NEW NANO -COAT Dip Systems can apply coatings from <60nm to >50μm at >3% accuracy

Being totally air operated the NEW Nano-Coat Dip Systems are totally safe to use with all coatings including flammable liquids and for the very widest range of applications.

Dip coating is the most effective method of applying a conformal coating whether in terms of efficiency, productivity or cost. High volume manufacturers design their assemblies so that any component that should not be coated (e.g. connectors, trimmers, presets, switches) are located on one side of the assembly.

Laser Marking

Laser engraving logos, text, QR code, barcodes, serial numbers, photos, images on metal and mark plastic parts and tools. Laser engrave and etch stainless steel, brass, aluminum ( iPhone, iPad ), iron, gold, silver, titanium and other metals. Laser marking plastic, ABS, acrylic, Nylon, pvc, marble, ceramic etc. Black laser engraving, deep laser engraving, color laser engraving

Ion Contamination Tester

Features
  • Designed for large part ionic contamination testing in a production environment
  • Submerged agitation jets and optional heated extract solution provide outstanding sensitivity
  • Available with convenient onboard all-in-one computer or tablet
  • Operated with SCS PowerView software
  • Test cells available in four test cell sizes

Cleaning Machine (PCB, Stencil)

Features
  • Analog model with timer
  • Analog model with timer and adjustable thermostatically controlled heater
  • Digital model with timer, heat, power control, and degas
  • All timers have continuous operation capabilities
  • Stainless drain valves supplied on models 1100, 1200, 1800, and 2600 versions
  • Analog or digital timers (digital not available on CP 200 model)
  • Ceramically enhanced transducers
  • All stainless steel enclosures resist damage from chemical spills and will not crack
  • Sweep frequency of 45 kHz
  • Adjustable thermostatically controlled heaters (ambient to 80°C)
  • Precise control of time, heat, power, and degas on digital units
  • Main on/off switch
  • Cover included with all units

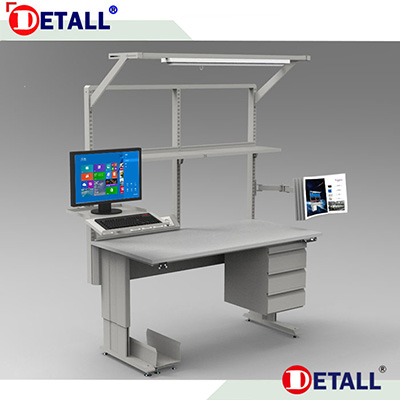

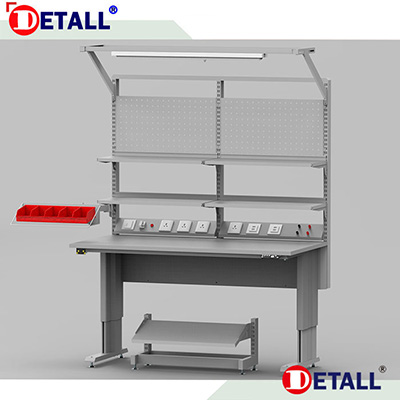

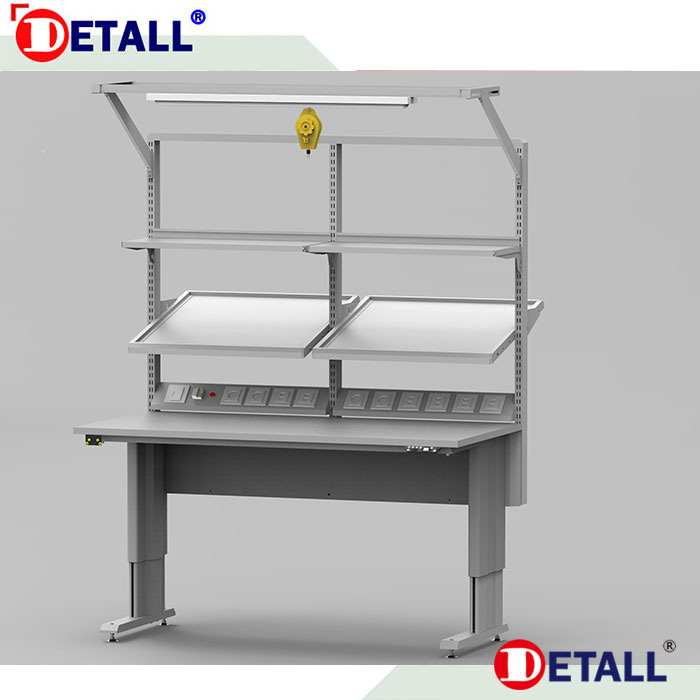

Motorized Workbench

Product Description & Manufacturing History

It is a matter of open reality that the ability to accurately position the work surface is vital for the basic target of reducing the strain and fatigue in shoulders, arms and the back of the workers. Due to this fact, the useful motorized workbench has become part and parcel of many of the corporations working in every corner of the globe.

The Detall Motorized Workbench assortment is the ultimate work surface for multi-shift operations because of the basic reason that it is powered by an electric motor that meets the global standards. The utilization of this motor is extremely easy and it will work according to your command without any delay. As it is well equipped with the functional design, thus it is able to provide lots of benefits to your employees in the shape of better health, comfort and efficiency that results in enhancing their performance.

The motorized workbench presented here will come in front of you in the form of having the Electric motor that can adjust the worktop to any height between the 26.5 inches to 44 inches. It has the capacity of bearing 700 lbs by up/down button and height can be read on the given LED display. Electric adjustment workstation can allowed all physical size operators to change the work surface for the purpose of getting a comfortable ergonomics working posture which will reduce the RMI (repetitive motion injury) in daily work.

Four-position heights can be programmed into memory by LED control panel for several frequently operator.

  • Loading capacity – 700 lbs
  • Bench adjusts from 26.4″ to 44″
  • Motor and control box are UL and CE approved
  • Four-position programmable height memory switch

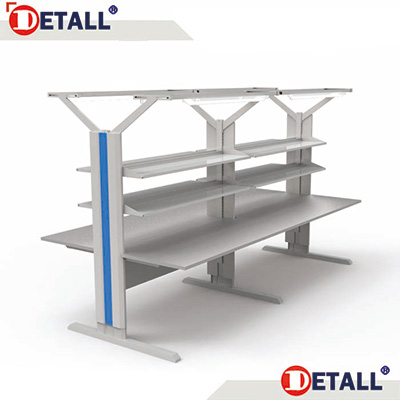

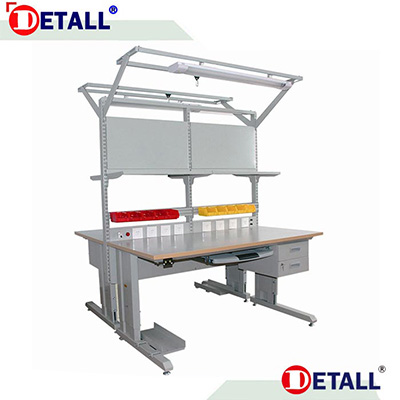

Double ESD Workbench

Product Description & Manufacturing History

The main target of the Double ESD Workbench is to make sure that the users will become able to work together in an ergonomic and collaborative environment without facing any difficulty. The chief goal of the Double ESD Workbench provided by Detall is to offer the best quality by adopting the structural steel frames which are well furnished with the double sided slots. Because of this fact, it will give the permission to the worktop and accessories to be shared with the double sided mounted on upright frame. This is the process that will allow the Detall ESD Workbench to get a workbench double configuration easily and efficiently.

Detall Double ESD Workstation

Seeing that the Detall Double ESD workbench set are designed while keeping a keen eye on the ergonomic factor, that’s why it will allow the users to get a comfortable position by adjusting every accessories no matter if the users have different body sizes who work in the face to face position. The Detall ESD Workbench collection is well equipped with certain types of qualities including the affordability, modular and ergonomic workbench functionalities. You can utilize it for any purpose although it is most appropriate for lab, technical, assembly, and other sensitive work in which the customized storage and features is required.

The Double ESD Workbench available at Detall have some specific features stated below.

  • Electrostatic Dissipative versions (ESD) are available
  • ESD parameter: worktop 106-109Ohm; other part 106-109 Ohm

Choosing the Detall Double ESD Workbench is your right decision as they are planned and produced by the professional Engineers. This workbench collection will come in front of you in the form of best quality and performance that will cover all your requirements. As they are available in reasonable thus affordable price, therefore, they will be an excellent addition to your workplace.

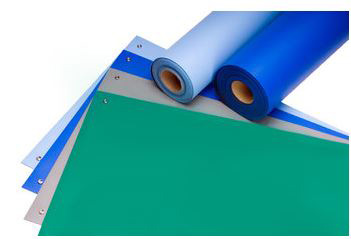

ESD mat/ESD floor

  • ESD mat has two-layer structure, surface layer is static dissipative layer, and the underlying layer is for conductive layer
  • ESD Floor is permanent antistatic, wear resisting, corrosion resistance, PVC-coated
  • Good acid proof, alkali proof, prevent chemical flux characteristics, and wear resistant
  • Size: 1*10m, 1.2*10m, thickness: 2mm, 2.5mm, 3mm
  • Surface Resistivity 10⁷-10⁹ Ω
  • Underlying Resistance 10ᶾ - 10⁵ Ω

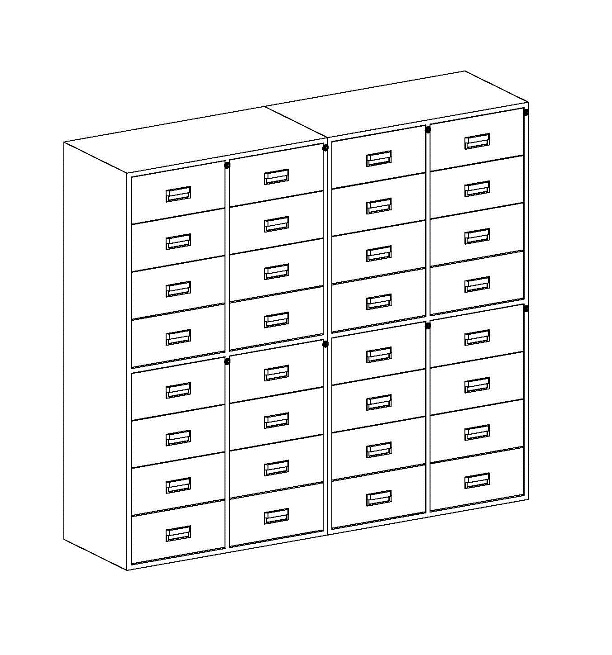

ESD Cabinet

In the advanced world of today particularly the industrial sector, the use of the Drawer Cabinets is the demand of the day because with the help of this option, you will become capable of obtaining a lot of storage space. In order to overcome the problem of electrostatic discharge, the use of the Drawer ESD Cabinets is a must for the industries particularly those ones in which the working is related to the field of electronics.

  • Certificate: ISO 9001:2008
Standard:
  • International Electrostatics: IEC 61340-5-1:2007,
  • European Safety of machinery: EN ISO 12100:2010,
  • European Safety of Electrical Equipment machinery: EN60204-1:2006+A1:2009+AC:2010

ESD & Clean Room Material

Features
  • Ergonomically designed
  • Standard on all seating
  • Thick foam padding
  • Adjustable seat height
  • 5 ESD twin 50 mm diameter swivel nylon castors
  • Easy assembly
*This ESD model is static-dissipative with a resistance less than 10^7 ohm.

Various Soldering/ Rework Station

ESD safe soldering station for a small budget – suitable for work on static-sensitive components. The 60W heating element is strong enough for all soldering jobs in your lab or production line.
Technical Specification:-
  • Power Consumption: 60W
  • Input Voltage: 220VAC±10% 50HZ (110V optional)
  • Output Voltage: 24VAC
  • Temperature Range: 150 ~ 450℃ (302 ~ 842℉)
  • Temperature stability: ±2℃(still air and have no load)
  • Temperature Accuracy: ±15℃
  • Tip to Ground Impedance: <2Ω
  • Tip to Ground Voltage: <2mV
  • Setting Mode: keying Adjustment and Immediate Access
  • Temperature-correcting Mode: Digital
  • Heating Core: 60W Two-core Ceramics Heating Core
  • Physical Dimension of Principal Machine: 146(L)×120(W)×91(H)mm
  • Standard tip: AT-900M
  • Weight: Ca. 1.8Kg

X-Ray Inspection

The system’s intuitive operation allows inspection tasks to be performed quickly and effortlessly. Due to the extreme speed of inspection workflows, it is especially suited for the inspection of small-scale series. In the case of manual or single-part inspection, the 1-click operation enables availability of the first radiographic image within a few seconds. Functions such as Click & Center, Click & Fly or Grid Inspection are also 1-click operations. When designing special attention was paid to a small space requirement and intuitive operation. So the system can be operated in nearly any location, and even inexperienced operators can acquire good images quickly.
Features
  • Time to first image (typ.) ~ 10 s
  • Reconfiguration time (typ.) < 60 s
  • μCT scan time (min.) 8 s
  • μCT reconstruction time (min.) ~ 60 s
  • Image chain flat panel detector
  • CNC yes, incl. Click & Center etc.
  • Twin magnifcation axis yes, for Zt and Zd positioning
  • Oblique viewing +/-70° (140°)

Video Measuring Machine

Benchtop, automatic, non-contact measurement system with full CNC control for value-conscious customers.

Built on a solid granite base and column, MVP provides the kind of performance that has made SmartScopes popular around the world.

Motorized translation stages with precision scales make measurements fast and accurate. Metrology software allows any operator to achieve repeatable measurements on the most complex parts.

A feature-packed dimensional metrology software with an extensive array of measurement tools that emphasize ease of use including intelligent edge detection, user friendly icons and a point and click interface.
Key Technologies
  • High quality 6.5 to 1 zoom lens
  • Solid, stable, reliable granite structure
  • Measure-X metrology software
  • 0.5 µm scales in XYZ axes
  • High resolution color camera
  • Convenient joystick control of all axes

Microscopes

Features
    1. Advanced Optical System, Low Distoration, High Definition, Large Field of View, Super Depth of Field(≥6mm) and Good Parfocality.
    2. New Design,Easy Operation
    3. Manual 36° 2D/ 3D Rotary Observation Lens Attachment
    4. Super Long Working Distance, Standard W.D: 95mm
    5. Auto-focus for Different Digital and Analog Cameras
    6. Compact, Practical and Cost-effective

Plating Rectifiers & Pulse Reverse Powers Supplies

Plating electronic is one of the technology leaders in direct current rectifiers and pulse power supplies for electrochemical processes. These primarily include electroplating, surface treatment of aluminium, PCB manufacturing and water treatment. plating electronic delivers tailored solutions for optimal power supply in all these sectors.

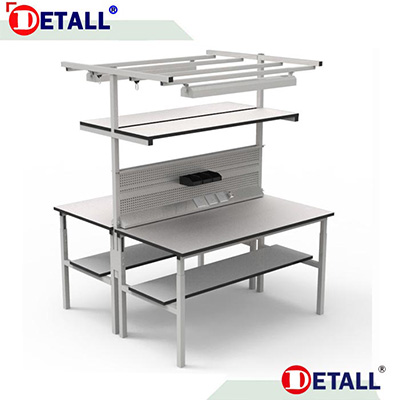

Double sided tower workbench:

The Laboratory ESD workbench is a specific type of workbench which has the ability to adopt the structure of table together with the double slotted Upright frame supporter in a simple and effort less method. Because of this fact, it is able to allow the work surface or the optional accessories to be mounted on either side and anywhere along column. As a result, it will give you an immense number of functionalities just according to the requirements of your working area. This is the major cause that the utilization of the useful Laboratory ESD Workbench is going to be enhanced in most of the well famous companies all over the world. But you need to check that the Laboratory ESD workbench which you wish to buy must meet the international standards and cover all your requirements in addition.

By using the creatively designed Laboratory ESD workbench just like caters by Detall, you will become capable of making the working surfaces and optional modular accessories easily adjustable on workstation. The Detall Laboratory ESD workbench collection will make the entire working surface ESD safe. It will provide you the anti static workbench validity on permanent basis. This workbench collection is available at Detall has the functionalities of both the single sided and double sided stations

Packing ESD Table

The utilization of the Packing ESD Table is going to be enhanced at every moment passing due to its enormous advantages. It is an efficient means to standardize the packing of assorted items and thus to make the assortment in each package uniform in number and kind so that the process of packing will become a piece of cake, useful and up to the mark. This is the main cause that the use of the packing table can be observed by and large in the current going era for which the Detall Packing ESD Table is the best choice.

The Detall Packing ESD table is well equip with the professional accessories for making the packing procedure as simple as possible. It is made in such a wonderful way that it has become helpful in order to move and packing easily and professionally for the sake of presenting a well packages for a good first impression of goods and company.

The parts which are used in the ESD packing table provided by Detall are obviously made of ESD material consisting of the ground kit, ESD laminate tabletop. ESD coating table frame, anti-static table and parts that helps the electrostatic on packing material discharge to ground in no time.

The Detall Professional packing accessories are large in number that will definitely cover your demands. A list of these accessories is shown below:
  • Steel divider hoops for holding cartons
  • Upper and lower shelf for storage paper and cardboard rolls
  • Ball Transfer Units on tabletop for easy rotation and move
  • Paper spool holder
  • Rotary shear cutter
  • Cantilever shelf
  • Overhead light and much more

The Detall ESD Packing table collection is modishly designed that will take little space but give you as much facilities as you demand from any packing table. As compare its functionality, the price level is very low.

Multi Workbench

The main target of any useful Multi ESD Workbench is to provide you the functionalities of erasing the entire problems of storage, caters a better display, fully operational in performance and meet the customer’s requirements. It should be well decorated with all the necessary accessories together with the durability in order to be utilized for any purpose.

Cabinet workbench

Multi Workbench

Multi Workbench

Medium Duty Workbench

Heavy Duty Workbench

Industrial Workbench

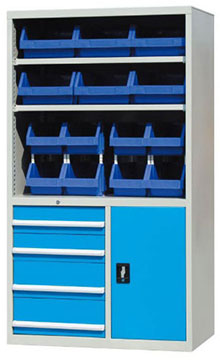

Tool Classification Cabinet

In the advanced world of today particularly the industrial sector, the use of the Drawer Cabinets is the demand of the day because with the help of this option, you will become capable of obtaining a lot of storage space. In order to overcome the problem of electrostatic discharge, the use of the Drawer ESD Cabinets is a must for the industries particularly those ones in which the working is related to the field of electronics.

Detall Drawer ESD Cabinets

Along with the exclusive design and full protection competence from the electrostatic discharge, the Detall Drawer ESD Cabinets have the ability to offer you huge storage space that is perfect for the purpose of covering your entire demands. They are designed in such a wonderful manner that even though they will take very less space but provide you as much storage facility as you may check in any other drawer cabinet. After you critically examine these Drawer ESD Cabinets in depth, you will come to know that they are up to the mark and meet every global standard such as the resistance value between the 1.0 x 109 and 1.0 x 106 ohms. The working and durability of these drawer cabinets are beyond your expectations which will definitely cater you huge number of facilities.

Following are the Drawer ESD Cabinets options that are offered by Detall. Every model you select will give you several drawers to store the things you desire. All of these drawer cabinets are very suitable for various sorts of industries because even though they look smart, take very less space and can be put anywhere but they deliver huge capacity at the same time. Any one of them is ideal from the protection point of view as they meet the international standards of BIFMA and ANSI.



Light Duty Trolley

The use of the welded wire mesh is not uncommon as it is utilized traditionally in lots of working areas. The main purpose of the mesh is to defend the original item, just like a guard in buildings and factories. Therefore, it is very valuable for preventing the harmful and unwanted things. Due to its remarkable functionality, the use of the mesh trolleys is increasing day by day all over the world. In the case when your business is related to electronics, the employment of the Light Mesh ESD Trolley is vital for you in order to get protection from the electrostatic discharge and giving the facility of working in the safe and sound environment.

Detall Light Mesh ESD Trolley

In the situation, when you are looking for the excellent working, full of protection and stylish light mesh ESD trolley, the services of Detall is very useful for you in this reference. Different models of light ESD trolleys are available in the Detall collection from which you can select the desired one easily just according to the requirements of your valuable business. These wonderful working trolleys are well equipped with the most useful carriage and self-combination facility for the basic target of providing you as much functionality as you may wish to have. The major characteristics of the Detall Light Mesh ESD Trolley collection are shown below.
  • The DIY display stand can use free adjustment of layer, number of layers and total height of the cargo are optional.
  • Suitable for high requirements of the environment, such as the dust-free workshop, clean room and hospital.


Industrial Trolley

Stainless Steel Trolley
