Atmospheric Plasma

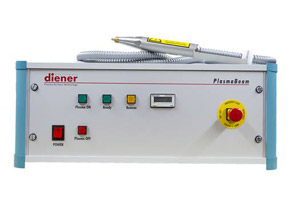

1. Plasma Beam Standard

• W 562 mm, H 211 mm, D 420 mm
• Weight: approx. 20 kg
• (19" housing)
• W 420 mm, H 140 mm, D 580 mm
• Weight: approx. 20 kg

• max. ∅ 32 mm, L 270 mm
• Weight: approx. 0.6 kg
• Cable length: 3 m (Special lengths on request)
• Treatment width: max. 12 mm
3. Generator
• Frequency: 20 kHz
• Power: 300 W
4. Connections
• process and cooling gas: dry, oil-free compressed air
• inlet pressure: 5.5 - 8 bar
• Gas consumption: approx. 2 m3/h
• Power supply: 230 V/6 A
5. Operation and Control
• Manual controls: Via buttons on the front panel of the unit
• Semi-automatic control: Remote operation via remote connector on the rear panel of the unit

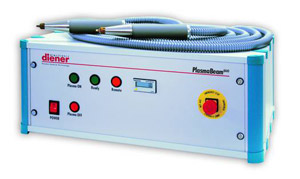

2. Plasma Beam PC

1. Supply unit (table top housing)
• W 562 mm, H 210 mm, D 420 mm
• Weight: approx. 20 kg
• (19" housing)
• W 420 mm, H 140 mm, D 580 mm
• Weight: approx. 20 kg
2. Plasma generator
• max. ∅ 32 mm, L 210 mm
• Weight: approx. 0.6 kg
• Cable length: 3 m
• Treatment width: max. 12 mm
3. Generator
• Frequency: 20 kHz
• Power: 300 W
4. Connections
• process and cooling gas: dry, oil-free compressed air
• inlet pressure: 5.5 - 8 bar
• Gas consumption: approx. 2 m3/h
• Power supply: 230 V/6 A
5. Operation and Control
• PC process visualization under Windows
Manual controls:
• Via buttons on the front panel of the unit or via touch screen
Automatic control:
• Remote operation via remote connector on the rear panel of the unit

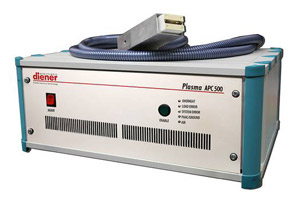

3. Plasma APC 500

1. Supply unit (table top housing)
• W 562 mm, H 211 mm, D 420 mm
• Weight: approx. 20 kg
2. Plasma generator
• W 180 mm, H 60 mm, D 40 mm
• Weight: approx. 0.5 kg
3. Generator
• Frequency: 40 kHz
• Supply voltage: 230 V, 50/60 Hz
4. Treatment width
• approx. 50 - 60 mm

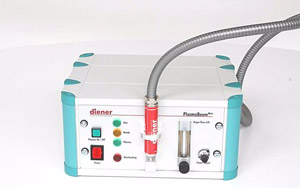

4. Plasma Beam Mini

1. Supply unit (table top housing)
• W 345 mm (13.94''), H 166 mm (6.54''), D 300 mm (11.81''),
• Weigeht: approx. 10 kg (22Ibs)
2. Plasma generator
• max. ∅ 25 mm (1''), L 150 mm (5.90''),
• Weight: approx 0,5 kg (1,1 Ibs),
• cable length: 1,5 m (59''),
• Frequency: 2,45 GHz, Max. power: 8 W
3. Connections Process gas
• Argon inlet pressure: 1 bar,
• Gas consumption: approx 2sl/min,
• power supply: 100 - 240 V / 1,5 A,
• 50/60 Hz D-Sub connection for remote control
4. Operation and Control
• Manual operation: ''Plasma ON''/OFF'' button on the front panel of the supply unit
• Semiautomatic: Remote control through D-SUB 25-pins connector on the rear panel of the supply unit.
