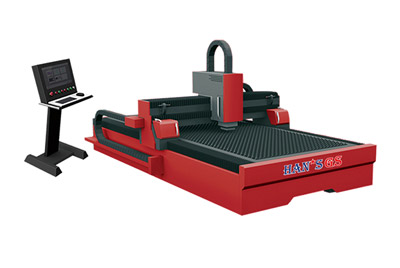

Laser Cutting Machine

Product Introduction
Laser cutting machine is high technology product intergreated of laser cutting, precision mechanism, digital control technical, adopting with big power laser source with international advance technology. The whole product is sensational designed with excellent flexibility and performance, with international famous brand of key parts, service motor, control system and others. The product has characteristic of high combination, more precision and stable running performance. It’s widely used in cutting and shaping industry for carbon steel, stainless steel and aluminum alloy, and regarded as best choice for metal cutting with high speed, high precision, high efficiency and high cost effective feature.
Product feature
  • Smaller Focal spot and cutting gap. Much more efficient and better processing quality.
  • Extremely high cutting speed which equals to two times of tradition CO2 laser cutting machine with the same power specification.
  • Adopt international top brand laser source with stable performance.
  • The photoelectric conversion rate is three times higher than traditional CO2 laser cutting machine, and it’s environmental protection.
  • Lower running cost compare with traditional CO2 laser cutting machine, the power consumption is 20%~30% of CO2 laser cutting machine.
  • The maintenance cost of fiber laser cutting machine is much lower since it’s without reflective lenses.
  • Convenient operation with fiber transmission laser route adjustment is unnecessary.
  • Satisfied with imported AC server motor system and transmission system to ensure the high speed, high precision and high reliability.
  • Gantry design with double drive structure, high damping machine tool with better rigidity which can stand higher speed and reliability.
  • The rack and guide is comprehensively sealed to prevent the friction without oil and dust pollution in order to make the drive system much longer service time and ensure the movement precision of the machine tool.
  • Professional CNC laser control system with computer control which is more simple and convenient for operation.
Humidity Range
Laser source medium Fiber
Cutting range(L*W) 3000mm×1500mm
Max positioning speed 36m/min
Work platform size Max height of feeding material 4250×2500mm/more than 120mm
Cooling form Water cooling
Laser wave length 1070nm
Output power of laser source 1000W (imported)
Min cutting gap ≤0.1mm
Thickness of cutting material 0.2-12mm (according to material)
Drive model Imported service motor
Transmission model X axis: double drive with gear and rack
Y axis: imported gear and rack
Power equipment 380V/50Hz
Workiong temperature 5°C~45°C
Continuous Working time 24Hour
Machine weight About 5950Kg
Outer dimension 7828mm×3741mm×1940mm
